HVLP / XVLP Turbine
Συσκευές βαφής με τουρμπίνα
XVLP Finish Control 5000
Για βαφή επιφανειών ως και 50 m²
- Γρήγορη βαφή με εξαιρετικό φινίρισμα χάρη στο καινοτόμο μπεκ ψεκασμού Visco Nozzle
- Εύκολη αλλαγή υλικών χάρη στο έξυπνο σύστημα ψεκασμού
- DirectSprayControl Πλήρης έλεγχος ψεκασμού στο πιστόλι
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
Κωδικός | 2316090 |
Βάρος | 8 kg |
Ισχύς Κινητήρα | 1.4 kW |
Τάση Ρεύματος | 230 V / 50 Hz |
Μέγιστη Πίεση Λειτουργίας | 0.275 bar, 0.0275 MPa |
Close
HVLP Fine Coat 9900 Plus
Υψηλής απόδοσης τουρμπίνα με πρακτικό σχεδιασμό
- Επιτρέπει ακριβή προσαρμογή στο αντικείμενο βαφής με αψεγάδιαστο φινίρισμα ψεκασμού ακόμα και στα υδροδιαλυτά υλικά.
- Με νέο σύστημα φίλτρων και δυνατή 4-βάθμια τουρμπίνα.
- Μεγάλο εύρος εφαρμογών σε εσωτερικούς & εξωτερικούς χώρους.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
Κωδικός | 276048 |
Βάρος | 10 kg |
Ισχύς Κινητήρα | 1.5 kW |
Τάση Ρεύματος | 230 V / 50 Hz |
Μέγιστο Μέγεθος Μπέκ | 0.031“ |
Μέγιστη Πίεση Λειτουργίας | 0.72 bar, 0.072 MPa |
Close
Piston Pumps
Ηλεκτρικά Μηχανήματα Πιστονιού
Control Pro 350 Extra
The airless device with maximum control
- Up to 55% less overspray mist thanks to reduced spraying pressure
- Direct intake from the original container: for fast, clean painting
- Maximum control: soft spray pattern makes paint application easier
- Valve depressor: for high levels of operating safety and easy start-up
- Handy cart and compact design: make changing working location easy
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
Κωδικός | 2371065 (Cart Version) |
Βάρος | 13 kg |
Ισχύς Κινητήρα | 0.6 kW |
Τάση Ρεύματος | 230 V / 50 Hz |
Μέγιστο Μέγεθος Μπέκ | 0.019“ |
Μέγιστη Πίεση Λειτουργίας | 110 bar, 11 MPa |
Μέγιστη Παροχή | 1.5 l/min |
Close
Diaphragm Pumps
Ηλεκτρικές Διαφραγματικές Αντλίες
SuperFinish 23 Pro
Robust.Durable.Reliable – For perfect results
- Innovative HEA technology: Up to 55% less overspray with maximum control.
- Flexible suction hose: The diaphragm pump draws materials such as dispersions, latex paints or varnishes directly from the original container.
- Easy to move: The SuperFinish 23 Pro, with its foldable frame, is ideal for easy and space-saving transport on the construction site.
- Excellent reliability thanks to diaphragm pump technology: The SuperFinish 23 Pro is virtually maintenance-free, works reliably and durably and can be used with even small amounts of material.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
Κωδικός | 2399198 |
Βάρος | 27 kg |
Ισχύς Κινητήρα | 1.3 kW |
Τάση Ρεύματος | 230 V / 50 Hz |
Μέγιστο Μέγεθος Μπέκ | 0.023“ |
Μέγιστη Πίεση Λειτουργίας | 250 bar, 25 MPa |
Μέγιστη Παροχή | 2.6 l/min |
Close
SuperFinish 33 Pro
The pump for every project
- The diaphragm pump for every project – outstanding performance for indoor and outdoor application.
- Versatile applications: The SuperFinish 33 Pro can process a diverse range of materials and service a wide variety of industries and project sizes.
- Optimum efficiency and productivity: With a delivery rate of 4.3 litres per minute, the SuperFinish 33 Plus is the most powerful WAGNER diaphragm pump in the professional segment.
- Quality LongStroke Technology (QLS): For a long service life, easy maintenance and low wear.
- Practical multi-gun operation: For parallel use, a distributor adapter for connecting up to three airless guns is available separately as an accessory.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
Κωδικός | 2388260 |
Βάρος | 43 kg |
Ισχύς Κινητήρα | 2.2 kW |
Τάση Ρεύματος | 230 V / 50 Hz |
Μέγιστο Μέγεθος Μπέκ | 0.033“ |
Μέγιστη Πίεση Λειτουργίας | 250 bar, 25 MPa |
Μέγιστη Παροχή | 4.3 l/min |
Close
SuperFinish 33 Plus
The pump for every project
- Versatile applications: The SuperFinish 33 Plus can process a diverse range of materials and service a wide variety of industries and project sizes.
- Optimum efficiency and productivity: With a delivery rate of 4.3 litres per minute, the SuperFinish 33 Plus is the most powerful WAGNER diaphragm pump in the professional segment.
- Quality LongStroke Technology (QLS): For a long service life, easy maintenance and low wear.
- Practical multi-gun operation: For parallel use, a distributor adapter for connecting up to three airless guns is available separately as an accessory.
- Flexible use: Switch the pump position with a single hand movement from working with the top container to the rigid suction system with fine filter meshes.
- Illuminated multifunction switch: For switching on/off as well as circulation and spray mode. This prevents accidental switching on or off while the system is under pressure.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
Κωδικός | 2388259 |
Βάρος | 50 kg |
Ισχύς Κινητήρα | 2.2 kW |
Τάση Ρεύματος | 230 V / 50 Hz |
Μέγιστο Μέγεθος Μπέκ | 0.033“ |
Μέγιστη Πίεση Λειτουργίας | 250 bar, 25 MPa |
Μέγιστη Παροχή | 4.3 l/min |
Close
Hydraulic Piston
Υδραυλικές Αντλίες Πιστονιού
HeavyCoat 970 E
All-round Xtra speed for XL projects
- The HC 970 is WAGNER’s most powerful hydraulically driven piston pump.
- The perfect choice for large areas and intensive usage.
- Maximized capacity: With a delivery volume of 10 l/min.
- Innovative HeavyCoat product features: With a choice of either a petrol or electric motor which can be switched in a few minutes! – Fast container changeovers, easy to clean and transport thanks to the swivelling Swing Cart pump unit etc.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
Κωδικός | 2332191 |
Βάρος | 100 kg |
Ισχύς Κινητήρα | 5.5 kW |
Τάση Ρεύματος | 230 V / 50 Hz |
Μέγιστο Μέγεθος Μπέκ | 0.056“ |
Μέγιστη Πίεση Λειτουργίας | 250 bar, 25 MPa |
Μέγιστη Παροχή | 10 l/min |
Close

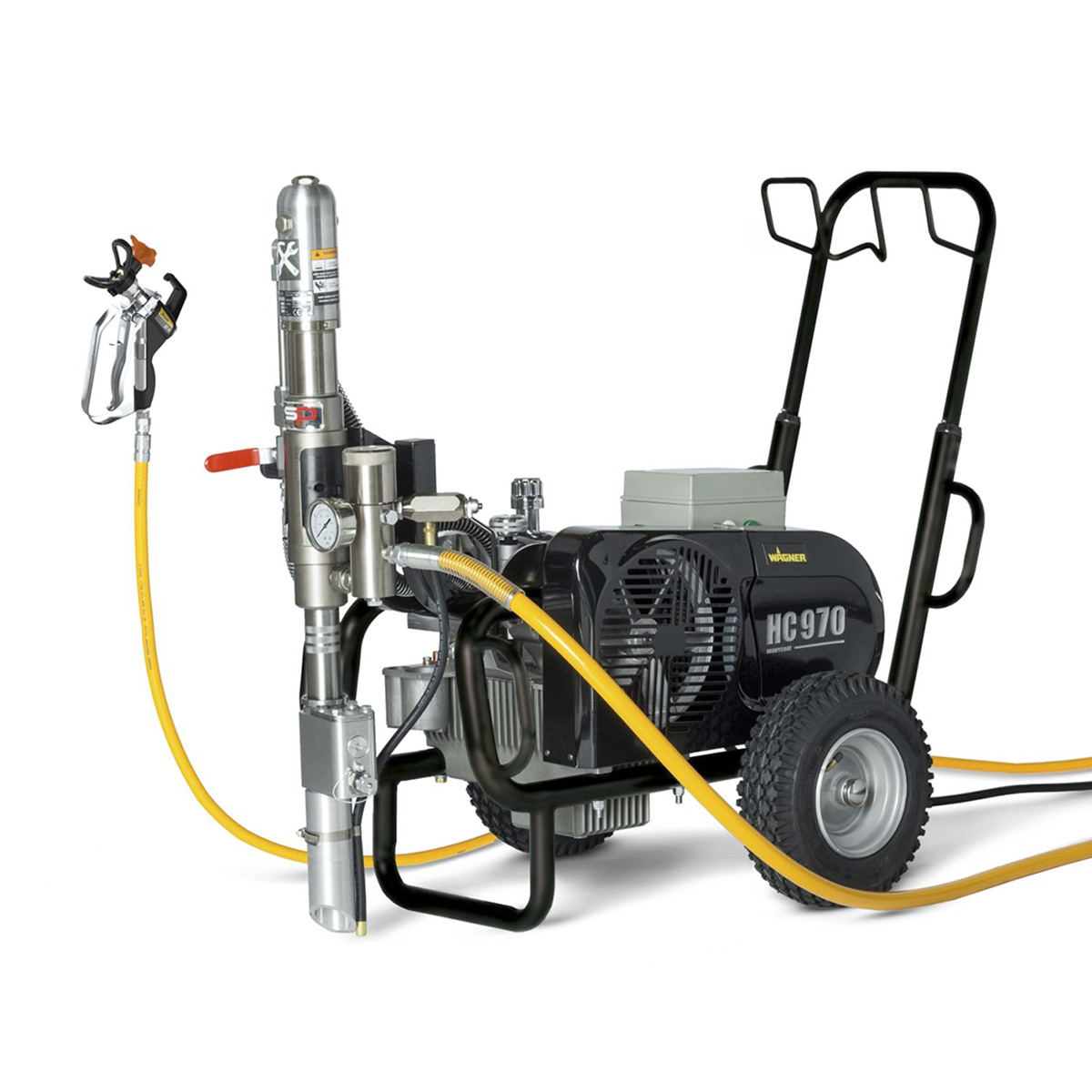

HeavyCoat 970 E SSP
All-round Xtra speed for XL projects
- With a delivery volume of 12 l/min, the HC 970 is WAGNER‘s most powerful hydraulically-driven piston pump.
- Equipped with shovel piston for enhanced performance (SSP).
- The perfect choice for large areas and intensive usage.
- Maximised capacity: With a delivery volume of 12 l/min.
- Innovative HeavyCoat product features: With a choice of either a petrol or electric motor which can be switched in a few minutes! – As an option, you can order even more performance with the SSP – Fast container changeovers, easy to clean and transport thanks to the swivelling SwingCart pump unit etc.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
Κωδικός | 2332193 |
Βάρος | 103 kg |
Ισχύς Κινητήρα | 5.5 kW |
Τάση Ρεύματος | 400 V / 50 Hz |
Μέγιστο Μέγεθος Μπέκ | 0.056“ |
Μέγιστη Πίεση Λειτουργίας | 250 bar, 25 MPa |
Μέγιστη Παροχή | 10 l/min |
Close
Screw Pumps
Κοχλιωτές Αντλίες
PlastCoat HP 30
Uniting the best – Robust high-pressure spiral pump with airless technology for high-viscosity fillers
- Simplest handling: The user-friendly operating concept enables error-free application – even for beginners. The ergonomic airless gun and high-pressure hose guarantee a high level of operating comfort when applying the material.
- Maximum performance: The PlastCoat HP 30 provides a convincing delivery capacity of >10kg/min. The spraying pressure can also be freely adjusted (40-120 bar).
- Exceptionally reliable: The low-wear and low-maintenance spiral pump is characterised by its robust and proven technology. In addition, airless spraying technology allows particularly high-quality surfaces to be achieved.
- Flexible use: Thanks to HEA technology, the spiral pump can easily be converted for the application of dispersion paints.
- Low-noise power-plastering: The PlastCoat HP 30 enables quiet and comfortable airless spraying without an additional compressor at up to 120 bar working pressure.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
Κωδικός | 2388301 |
Βάρος | 72 kg |
Ισχύς Κινητήρα | 2.3 kW |
Τάση Ρεύματος | 230 V / 50 Hz |
Μέγιστο Μέγεθος Μπέκ | 0.055“ |
Μέγιστη Πίεση Λειτουργίας | 120 bar, 12 MPa |
Μέγιστη Παροχή | >10 kg/min |
Close
PlastCoat 830 Ε
High-performance plaster spraying system
for large areas
- Professional coverage of large areas: powerful motor and integrated material container.
- Practical: Automatic stator extraction for easy cleaning.
- Wide range of possibilities: Rounded off by accessories such as bag presses.
- Easy to transport: Easy to dismantle.
- Possibility to switch the pump on or off directly at the spray lance (electrically).
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
Κωδικός | 2308305 |
Βάρος | 47 kg |
Ισχύς Κινητήρα | 1.8 kW |
Τάση Ρεύματος | 230 V / 50 Hz |
Μέγιστη Πίεση Λειτουργίας | 40 bar, 4 MPa |
Μέγιστη Παροχή | 12 l/min |
